Collect card payments

Prepare your application and back end to collect card payments using Stripe Terminal.

Copy page

Learn More

New to the Payment Intents API? Here are some helpful resources:

  • The Payment Intents API
  • The PaymentIntent object
  • More payment scenarios

Collecting payments with Stripe Terminal requires writing a payment flow in your application. Use the Stripe Terminal SDK to create and update a PaymentIntent, an object representing a single payment session.

Designed to be robust to failures, the Terminal integration splits the payment process into several steps, each of which can be retried safely:

  1. Create a PaymentIntent.
  2. Collect a payment method. You can define whether to automatically or manually capture your payments.
  3. Confirm the payment. Authorization on the customer’s card takes place when the SDK confirms the payment.
  4. (Optional) Capture the payment

Create a PaymentIntent
Client-side
Server-side

The first step when collecting payments is to start the payment flow. When a customer begins checking out, your application must create a PaymentIntent object. This represents a new payment session on Stripe.

SDK Reference

  • createPaymentIntent (iOS)

You can create a PaymentIntent on the client or server.

Use test amounts to try producing different results. An amount ending in 00 results in an approved payment.

Client-side

Create a PaymentIntent from your client:

Warning

If your app is connected to the Verifone P400, you can’t create a PaymentIntent from the iOS SDK. Instead, you must create the PaymentIntent server-side, and retrieve the PaymentIntent in your app using the Terminal.retrievePaymentIntent method in the SDK.

PaymentViewController.swift
Swift
import UIKit import StripeTerminal class PaymentViewController: UIViewController { // ... // Action for a "Checkout" button func checkoutAction() throws { let params = try PaymentIntentParametersBuilder(amount: 1000, currency: "usd").build() Terminal.shared.createPaymentIntent(params) { createResult, createError in if let error = createError { print("createPaymentIntent failed: \(error)") } else if let paymentIntent = createResult { print("createPaymentIntent succeeded") // ... } } } // ... }

Server-side

You can create the PaymentIntent on your server if the information required to start a payment isn’t readily available in your app.

The following example shows how to create a PaymentIntent on your server:

Command Line
curl
curl https://api.stripe.com/v1/payment_intents \ -u
sk_test_BQokikJOvBiI2HlWgH4olfQ2
:
\ -d "amount"=1000 \ -d "currency"="usd" \ -d "payment_method_types[]"="card_present" \ -d "capture_method"="manual"

For Terminal payments, the payment_method_types parameter must include card_present.

You can control the payment flow as follows:

  • To fully control the payment flow for card_present payments, set the capture_method to manual. This allows you to add a reconciliation step before finalizing the payment.
  • To authorize and capture payments in one step, set the capture_method to automatic.

To accept payments in Australia, you need to set capture_method to automatic or manual_preferred. For more details, visit our Australia documentation. To accept Interac payments in Canada, you must also include interac_present in payment_method_types. For more details, visit our Canada documentation.

The PaymentIntent contains a client secret, a key that’s unique to the individual PaymentIntent. To use the client secret, you must obtain it from the PaymentIntent on your server and pass it to the client side.

Ruby
post '/create_payment_intent' do intent = # ... Create or retrieve the PaymentIntent {client_secret: intent.client_secret}.to_json end

SDK Reference

  • retrievePaymentIntent (iOS)

To retrieve a PaymentIntent, use the client secret to call retrievePaymentIntent.

After you retrieve the PaymentIntent, use it to call collectPaymentMethod.

PaymentViewController.swift
Swift
func checkoutButtonAction() { // ... Fetch the client secret from your backend Terminal.shared.retrievePaymentIntent(clientSecret: clientSecret) { retrieveResult, retrieveError in if let error = retrieveError { print("retrievePaymentIntent failed: \(error)") } else if let paymentIntent = retrieveResult { print("retrievePaymentIntent succeeded: \(paymentIntent)") // ... } } }

Collect a payment method
Client-side

SDK Reference

  • collectPaymentMethod (iOS)

After you’ve created a PaymentIntent, the next step is to collect a payment method with the SDK.

To collect a payment method, your app needs to be connected to a reader. The connected reader waits for a card to be presented after your app calls collectPaymentMethod.

PaymentViewController.swift
Swift
import UIKit import StripeTerminal class PaymentViewController: UIViewController, ReaderDisplayDelegate { // Label for displaying messages from the card reader let readerMessageLabel = UILabel(frame: .zero) var collectCancelable: Cancelable? = nil // ... // Action for a "Checkout" button func checkoutAction() throws { let params = try PaymentIntentParametersBuilder(amount: 1000, currency: "usd").build() Terminal.shared.createPaymentIntent(params) { createResult, createError in if let error = createError { print("createPaymentIntent failed: \(error)") } else if let paymentIntent = createResult { print("createPaymentIntent succeeded") self.collectCancelable = Terminal.shared.collectPaymentMethod(paymentIntent) { collectResult, collectError in if let error = collectError { print("collectPaymentMethod failed: \(error)") } else if let paymentIntent = collectResult { print("collectPaymentMethod succeeded") // ... Confirm the payment } } } } } } // MARK: MobileReaderDelegate - only needed for mobile readers, this is the delegate set during connectReader func reader(_ reader: Reader, didRequestReaderInput inputOptions: ReaderInputOptions = []) { readerMessageLabel.text = Terminal.stringFromReaderInputOptions(inputOptions) } func reader(_ reader: Reader, didRequestReaderDisplayMessage displayMessage: ReaderDisplayMessage) { readerMessageLabel.text = Terminal.stringFromReaderDisplayMessage(displayMessage) } // MARK: ReaderDisplayDelegate func terminal(_ terminal: Terminal, didRequestReaderInput inputOptions: ReaderInputOptions = []) { readerMessageLabel.text = Terminal.stringFromReaderInputOptions(inputOptions) } func terminal(_ terminal: Terminal, didRequestReaderDisplayMessage displayMessage: ReaderDisplayMessage) { readerMessageLabel.text = Terminal.stringFromReaderDisplayMessage(displayMessage) }

This method collects encrypted payment method data using the connected card reader, and associates the encrypted data with the local PaymentIntent.

Optionally inspect payment method details

SDK Reference

  • CollectConfiguration (iOS)
  • CardPresentDetails (iOS)

For advanced use cases, you can examine the payment method details of the presented card and perform your own business logic prior to authorization.

Use the initWithUpdatePaymentIntent parameter in CollectConfiguration to attach a PaymentMethod to the server-side PaymentIntent. This data is returned in the collectPaymentMethod response.

PaymentViewController.swift
Swift
class PaymentViewController: UIViewController, ReaderDisplayDelegate { // ... // Action for a "Checkout" button func checkoutAction() throws { let params = try PaymentIntentParametersBuilder(amount: 1000, currency: "usd").build() Terminal.shared.createPaymentIntent(params) { createResult, createError in if let error = createError { print("createPaymentIntent failed: \(error)") } else if let paymentIntent = createResult { print("createPaymentIntent succeeded") let collectConfig = try CollectConfigurationBuilder().setUpdatePaymentIntent(true).build() self.collectCancelable = Terminal.shared.collectPaymentMethod(paymentIntent: paymentIntent, collectConfig: collectConfig) { collectResult, collectError in if let error = collectError { print("collectPaymentMethod failed: \(error)") } else if let paymentIntent = collectResult { print("collectPaymentMethod succeeded") if let paymentMethod = paymentIntent.paymentMethod, let card = paymentMethod.cardPresent ?? paymentMethod.interacPresent { // ... Perform business logic on card } // ... Confirm the payment } } } } } }

Note

This method attaches the collected encrypted payment method data with an update to the PaymentIntent object. It requires no authorization until the next step, confirm the payment.

This advanced use case isn’t supported on the Verifone P400.

After payment method collection you must authorize the payment or cancel collection within 30 seconds.

If the SDK is operating offline, the paymentMethod field isn’t present in the PaymentIntent object.

You can access attributes like card brand, funding, and other useful data at this point.

Note

Stripe attempts to detect whether a mobile wallet is used in a transaction as shown in the wallet.type attribute. However, the attribute isn’t populated if the card’s issuing bank doesn’t support reader-driven identification of a mobile wallet, so accurate detection isn’t guaranteed. After authorization in the confirmation step, Stripe receives up-to-date information from the networks and updates wallet.type reliably

Cancel collection

Programmatic cancellation

SDK Reference

  • Cancelable (iOS)

You can cancel collecting a payment method using the Cancelable object returned by the iOS SDK.

Customer-initiated cancellation

SDK Reference

  • setEnableCustomerCancellation (iOS)

When you set setEnableCustomerCancellation to true for a transaction, smart reader users see a cancel button.

Tapping the cancel button cancels the active transaction.

PaymentViewController.swift
Swift
let collectConfig = try CollectConfigurationBuilder() .setEnableCustomerCancellation(true) .build() Terminal.shared.collectPaymentMethod(paymentIntent: paymentIntent, collectConfig: collectConfig) { intentWithPaymentMethod, attachError in }

Handle events

SDK Reference

  • ReaderDisplayDelegate (iOS)

When collecting a payment method using a reader like the Stripe M2, without a built-in display, your app must be able to display events from the payment method collection process to users. These events help users successfully collect payments (for example, retrying a card, trying a different card, or using a different read method).

When a transaction begins, the SDK passes a ReaderInputOptions value to your app’s reader display handler, denoting the acceptable types of input (for example, Swipe, Insert, Tap). In your app’s checkout UI, prompt the user to present a card using one of these options.

During the transaction, the SDK might request your app to display additional prompts (for example, Retry Card) to your user by passing a ReaderDisplayMessage value to your app’s reader display handler. Make sure your checkout UI displays these messages to the user.

Note

Your application doesn’t need to display events from the payment method collection process to users because the reader displays them. To clear the payment method on a transaction, you can cancel the request.

ReaderViewController.swift
Swift
// MARK: MobileReaderDelegate - only needed for Bluetooth readers, this is the delegate set during connectReader func reader(_ reader: Reader, didRequestReaderInput inputOptions: ReaderInputOptions = []) { readerMessageLabel.text = Terminal.stringFromReaderInputOptions(inputOptions) } func reader(_ reader: Reader, didRequestReaderDisplayMessage displayMessage: ReaderDisplayMessage) { readerMessageLabel.text = Terminal.stringFromReaderDisplayMessage(displayMessage) }

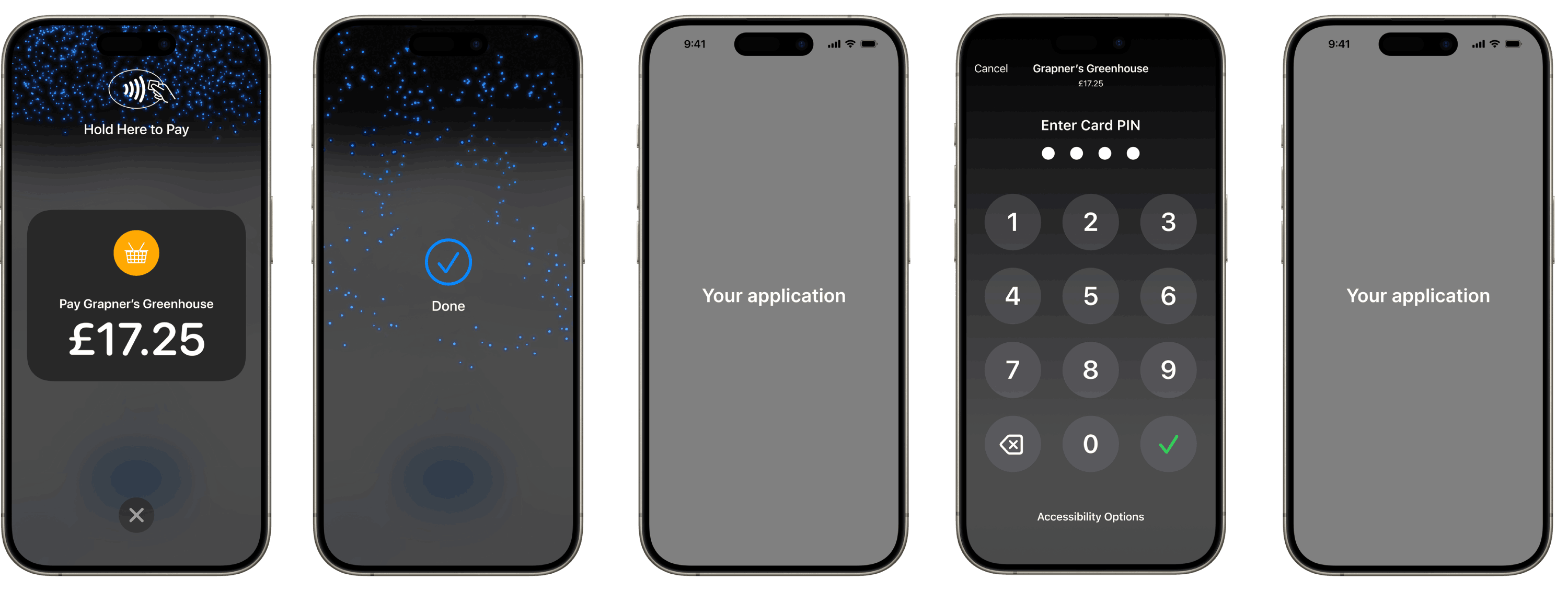

Collect payments with Tap to Pay on iPhone

When your application is ready to collect a payment, the Stripe iOS SDK takes over the display to handle the collection process. After calling the collect payment method, your application remains running, but the iPhone displays a full-screen prompt to the cardholder, instructing them to present their card or NFC-based mobile wallet. If there’s an error reading the card, a prompt for retry displays. A successful presentation returns a success indication, and then control returns to your application to confirm the payment.

Tap to pay on iPhone

Payment collection

Confirm the payment
Client-side

SDK Reference

  • confirmPaymentIntent (iOS)

After successfully collecting a payment method from the customer, the next step is to confirm the payment with the SDK. When you’re ready to proceed with the payment, call confirmPaymentIntent with the updated PaymentIntent from Step 2.

  • For manual capture of payments, a successful confirmPaymentIntent call results in a PaymentIntent with a status of requires_capture.
  • For automatic capture of payments, the PaymentIntent transitions to a succeeded state.
PaymentViewController.swift
Swift
// Action for a "Checkout" button func checkoutAction() throws { let params = try PaymentIntentParametersBuilder(amount: 1000, currency: "usd").build() Terminal.shared.createPaymentIntent(params) { createResult, createError in if let error = createError { print("createPaymentIntent failed: \(error)") } else if let paymentIntent = createResult { print("createPaymentIntent succeeded") self.collectCancelable = Terminal.shared.collectPaymentMethod(paymentIntent) { collectResult, collectError in if let error = collectError { print("collectPaymentMethod failed: \(error)") } else if let collectPaymentMethodPaymentIntent = collectResult { print("collectPaymentMethod succeeded") // ... Confirm the payment self.confirmCancelable = Terminal.shared.confirmPaymentIntent(collectPaymentMethodPaymentIntent) { confirmResult, confirmError in if let error = confirmError { print("confirmPaymentIntent failed: \(error)") } else if let confirmedPaymentIntent = confirmResult { print("confirmPaymentIntent succeeded") // Notify your backend to capture the PaymentIntent if let stripeId = confirmedPaymentIntent.stripeId { APIClient.shared.capturePaymentIntent(stripeId) { captureError in if let error = captureError { print("capture failed: \(error)") } else { print("capture succeeded") } } } else { print("Payment collected offline"); } } } } } } }

Warning

You must manually capture a PaymentIntent within 2 days or the authorization expires and funds are released to the customer.

Handle failures

SDK Reference

  • ConfirmPaymentIntentError (iOS)

When confirming a payment fails, the SDK returns an error that includes the updated PaymentIntent. Your application needs to inspect the PaymentIntent to decide how to deal with the error.

PaymentIntent StatusMeaningResolution
requires_payment_methodPayment method declinedTry collecting a different payment method by calling collectPaymentMethod again with the same PaymentIntent.
requires_confirmationTemporary connectivity problemCall confirmPaymentIntent again with the same PaymentIntent to retry the request.
PaymentIntent is nilRequest to Stripe timed out, unknown PaymentIntent statusRetry confirming the original PaymentIntent. Don’t create a new one, because that could result in multiple authorizations for the cardholder.

If you encounter multiple, consecutive timeouts, there might be a problem with your connectivity. Make sure that your app can communicate with the internet.

Avoiding double charges

The PaymentIntent object enables money movement at Stripe—use a single PaymentIntent to represent a transaction.

Re-use the same PaymentIntent after a card is declined (for example, if it has insufficient funds), so your customer can try again with a different card.

If you edit the PaymentIntent, you must call collectPaymentMethod to update the payment information on the reader.

A PaymentIntent must be in the requires_payment_method state before Stripe can confirm it. An authorized, captured, or canceled PaymentIntent can’t be confirmed by a reader.

Capture the payment
Server-side

If you defined capture_method as manual during PaymentIntent creation in Step 1, the SDK returns an authorized but not captured PaymentIntent to your application. Learn more about the difference between authorization and capture.

When your app receives a confirmed PaymentIntent from the SDK, make sure it notifies your backend to capture the payment. Create an endpoint on your backend that accepts a PaymentIntent ID and sends a request to the Stripe API to capture it:

Command Line
cURL
curl -X POST https://api.stripe.com/v1/payment_intents/{{PAYMENT_INTENT_ID}}/capture \ -u "
sk_test_BQokikJOvBiI2HlWgH4olfQ2
:"

A successful capture call results in a PaymentIntent with a status of succeeded.

Note

To make sure the application fee captured is correct for connected accounts, inspect each PaymentIntent and modify the application fee, if needed, before manually capturing the payment.

Reconcile payments

To monitor the payments activity of your business, you might want to reconcile PaymentIntents with your internal orders system on your server at the end of a day’s activity.

A PaymentIntent that retains a requires_capture status might represent two things:

Unnecessary authorization on your customer’s card statement

  • Cause: User abandons your app’s checkout flow in the middle of a transaction
  • Solution: If the uncaptured PaymentIntent isn’t associated with a completed order on your server, you can cancel it. You can’t use a canceled PaymentIntent to perform charges.

Incomplete collection of funds from a customer

  • Cause: Failure of the request from your app notifying your backend to capture the payment
  • Solution: If the uncaptured PaymentIntent is associated with a completed order on your server, and no other payment has been taken for the order (for example, a cash payment), you can capture it.

Collect tips US only

In the US, eligible users can collect tips when capturing payments.
